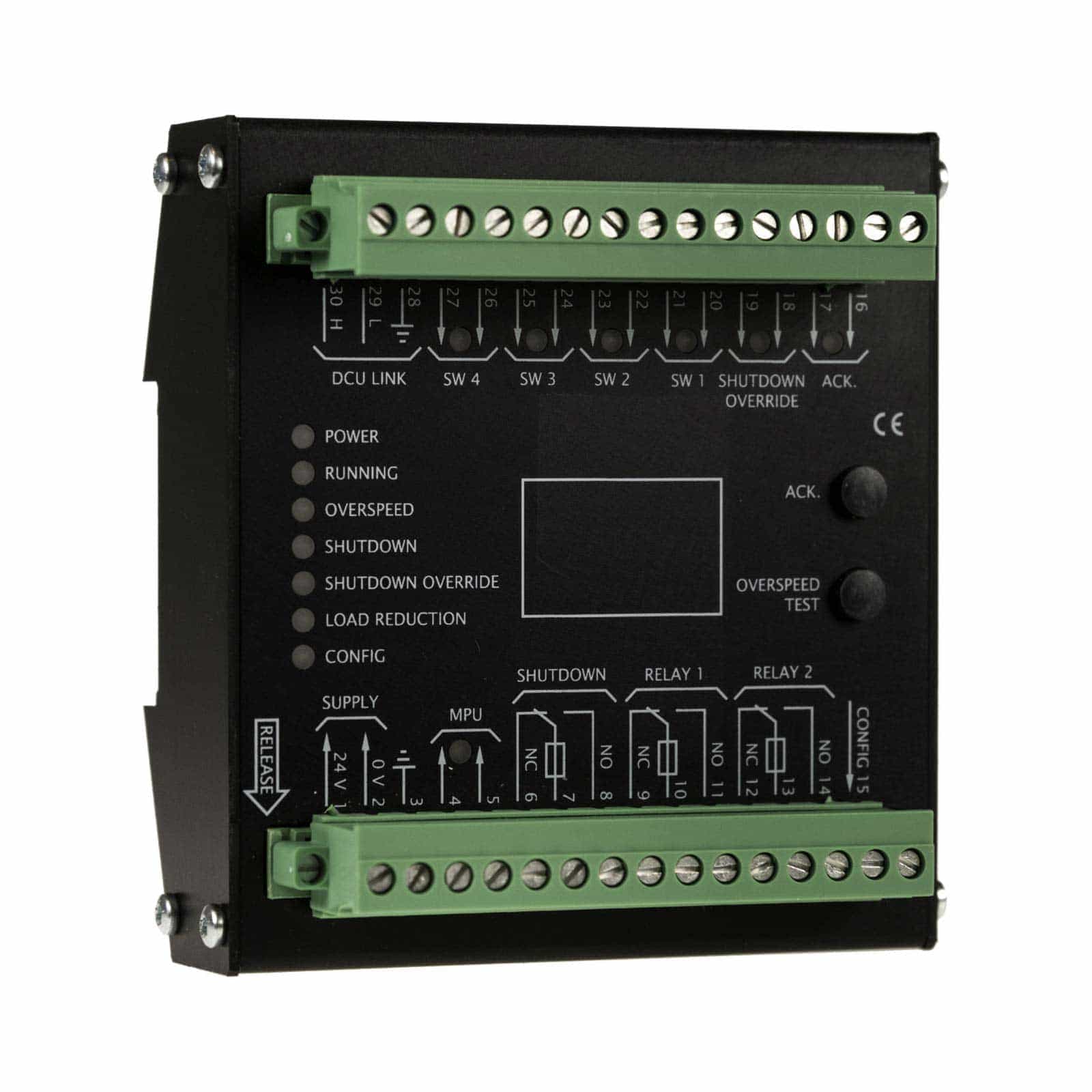

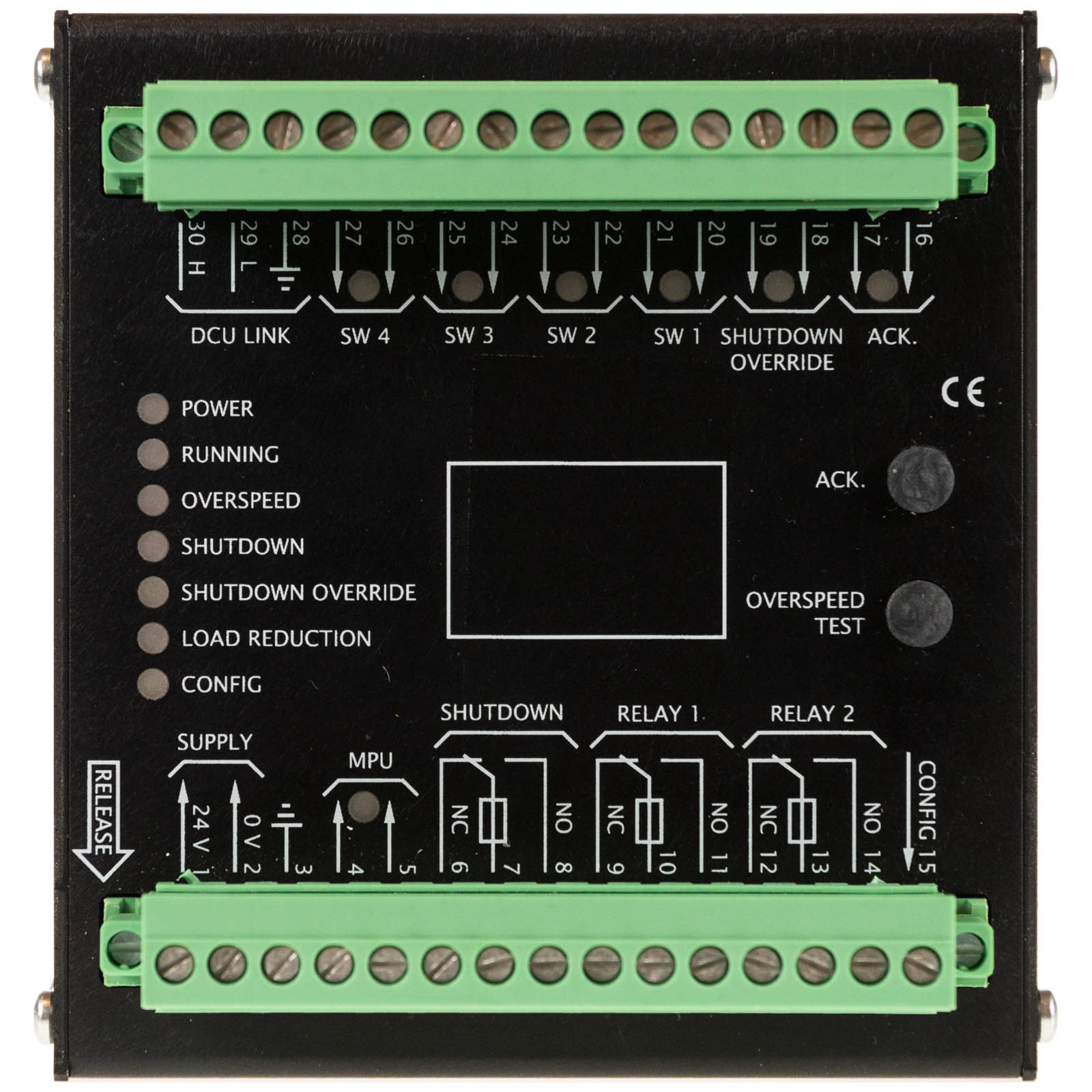

SDU 404 Safety Shutdown Unit
The SDU 404 joins its larger SDU 420 to provide the independent shutdown capability required by Classification societies. Certified by DNV (pending), this 4 channel unit provides the key functionality and cost-effective price to align to smaller engines requiring this level of global compliance. Cyber Security certified.
The SDU 404 is equipped with local fault and channel status indications, local acknowledge, reset and overspeed test mode required by classification society rules during local survey and commissioning.
Designed to be used with either the 200 Series or the 400 Series DCUs, this unit is automatically configured from the DCU, just requiring a twisted pair “SDU Link” between each component. “Plug and play” installation provides valuable cost and resource reductions with no programming and no configuring.
At a glance:
4-channel unit suitable for smaller engines
Local fault and status indications via LEDs
Gear and RPM interlocks available on all channels
Secondary shutdown override for Oil Mist
Wire break and short-circuit detection
RPM channel with loop monitoring
Short-circuit protection
Overspeed test mode
18 – 32V DC power supply flexibility
Why choose the SDU 404:
For use on all mechanical and electronic engines
Compatible with all 200 and 400 Series DCUs
Reduced cost-compliance for smaller engines
Automatically configured from the DCU
Smaller footprint with premium features included
No special tools and no programming are required
Ability to derate rather than shutdown
Local acknowledge
Remote acknowledge input
SKU: 1006418
Category: Safety Modules
Tags: Marine Pro 200, Marine Pro 400, Safety Module
