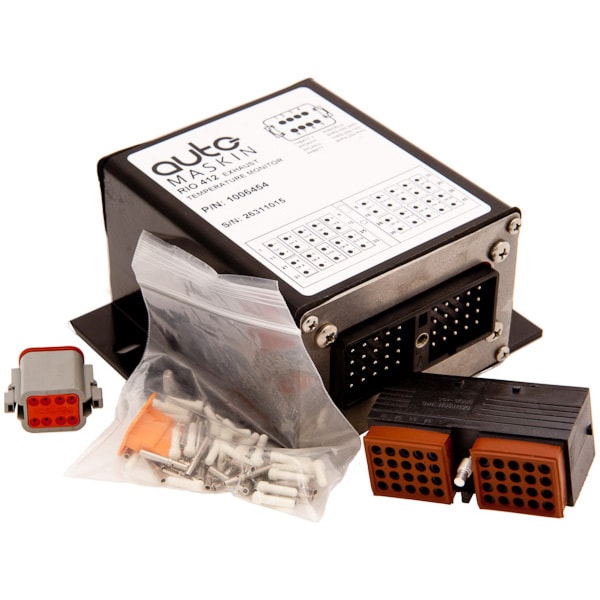

RIO 412 Exhaust Temperature Interface
The RIO 412 is a rugged 20-channel K-type thermocouple unit with a SAE J1939 CAN bus interface. It makes accurate exhaust temperature monitoring affordable and easy.
The unit can be used stand-alone, or it can be linked easily into the DCU engine panels in the 200 or 400 Series.
When linked to a DCU panel, each cylinder temperature is clearly displayed, and the DCU calculates and displays the moving average value, per bank.
The DCU can of course be configured to indicate warning/alarm limits on each of the cylinder temperatures.
At a glance
20 configurable K Type thermocouple input channels
1 CANbus interface J1939
Compatible and configured via DCU 400 series
Alarms for excess temperature
Alarm for excessive channel deviation temperature
Connects to DCU via simple two wire twisted pair
IP65 enclosure
24V DC power supply
Why choose the RIO 412:
Provides real time indication of engine parameter
Deviation alarm is a critical in cylinder performance monitor
Multiple channel provides flexibility in matching cylinder configuration
Compatible with DCU 400 series
Requires no special tool, cables or software
Configured via internet browser
SKU: 1006454
Category: Expansion I/O
Tags: Expansion I/O
