Our Product
RIO 210 Remote I/O Unit
The unit is easily interfaced to the engine panel on the provided 2-wire RIO Link. Cyber Security certified.
The unit is especially adapted for smaller engines and very well suited with the 200 Series of engine panels.
The RIO 210 has a good mix of switch, thermistor/PT100, 0-5V and thermocouple input channels. It also has a number of relay and binary outputs. Please consult the datasheet for exact number of input- and output channels.
The RIO 210 is non-classed but still fully compatible with the classed 400 Series, in projects where the 400 Series is used in a non-classed situation.

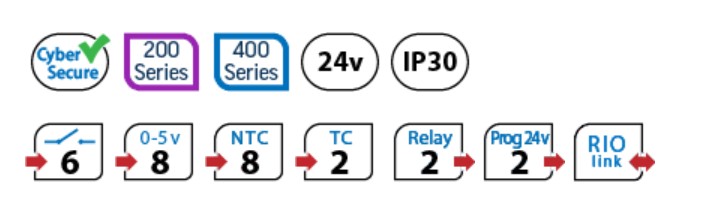

At a glance:
6 channels for configurable switch inputs
8 channels for configurable Thermistor inputs
8 channels for configurable 0-5V inputs
8 channels for configurable 0-5V inputs
2 channels for configurable K Type thermocouple inputs
2 configurable 24v DC outputs 2 configurable relay outputs [NO/NC]
2 wire RIOLink databus to DCU simplifies wiring
Why select the RIO 210:
Compatible with all Marine Pro DCUs
Connects to DCU via a simple two wire twisted pair
Provides flexibility to integrate differing applications into a standard package
Can be placed close to sensor package to reduce wiring complexity and runs
Provides connectivity to lower cost sensor package
No on site configuring required
SKU: 1006462
Category: Expansion I/O
Tags: Expansion I/O, RIOLink
