Our Product
RP 480i Remote Panel

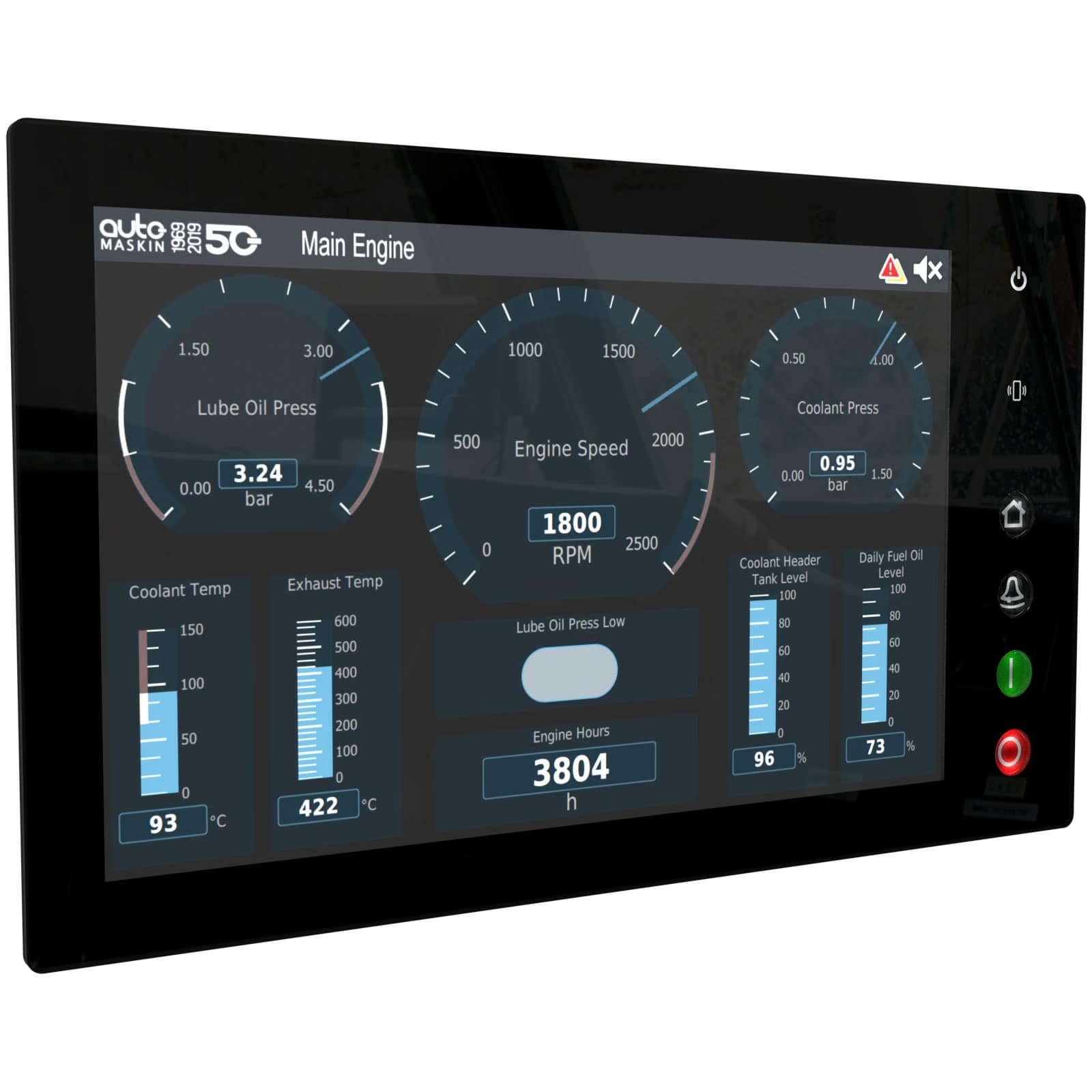

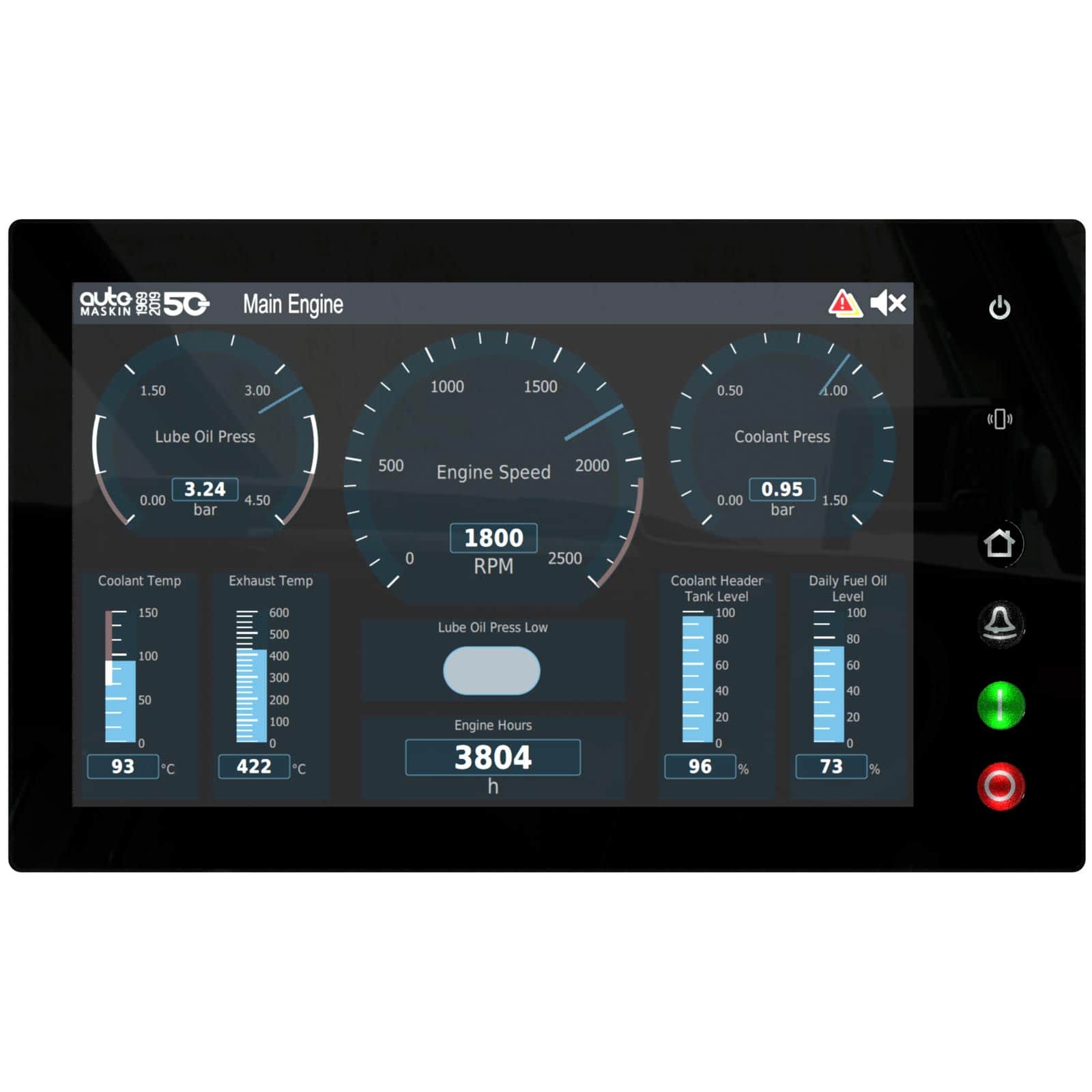

The RP 480i is a high resolution, sunlight capable remote touchscreen panel for multiple engine configurations with Marine Pro engine controllers (DCUs) or as a stand alone remote panel. Multiple languages, intuitive menus with simple icons and the latest in graphical interfaces.
The RP 480i can be used as a replacement for the RP 410(E) and of course, retains several IACS Society Approvals. The RP 480i can monitor and control up to eight DCU engine controllers in the Auto-Maskin 200 or 400 Series. The panel is also truly self-configuring. Any changes in any engine controller’s configuration are immediately reflected into the RP 480i without any operator actions.
The ultra-crisp touch screen, colour graphics, and fully protected front and rear provide the best readability and reliability under all weather conditions. Capable of displaying up to eight engines with a complex set of sensor data. The panel connects to DCUs using only a standard Ethernet cable, and will automatically “find” any DCUs that are connected to the network. No configuring, no setup, no hassle. Additionally, when connected, the RP will update itself with any DCU configuration changes automatically, providing seamless consistency across all panels.
Modern effective graphics, included dedicated night modes provide clear precise information to operator. The panel has its own dedicated flexible I/O allowing easy integration into vessel sub systems, as well as several options for data integration via J1939, NMEA 2000 or Modbus interfaces. With features looking into the feature available now, such as smartphone recognition, proximity sensors and NFC tags, the RP 480i is fully specified to take your vessel into tomorrows electronic enviroment.
At a glance:
Truly self-configuring
12″ touch screen with swipe support
Smartphone and tablet integration
User-defined graphical interface
Durable “glass” helm design
Multipanel filtered alarm list
Control and monitor up to eight Marine Pro engine controllers
Automatic ambient light and night mode functions
Why choose the DCU 410E:
Simple and cost-effective installation with low technical risk
Clear accurate data provides safe decision making by the crew
No special programming for vessel customisation
Integrates with all existing Marine Pro installations
Global product with multiple languages built in improves crew retention and safe operation
SKU: 1500061
Category: Remote Panels
Tags: IP56, Marine Pro 400, Remote Panel, Touchscreen
