RP 420E Remote Panel

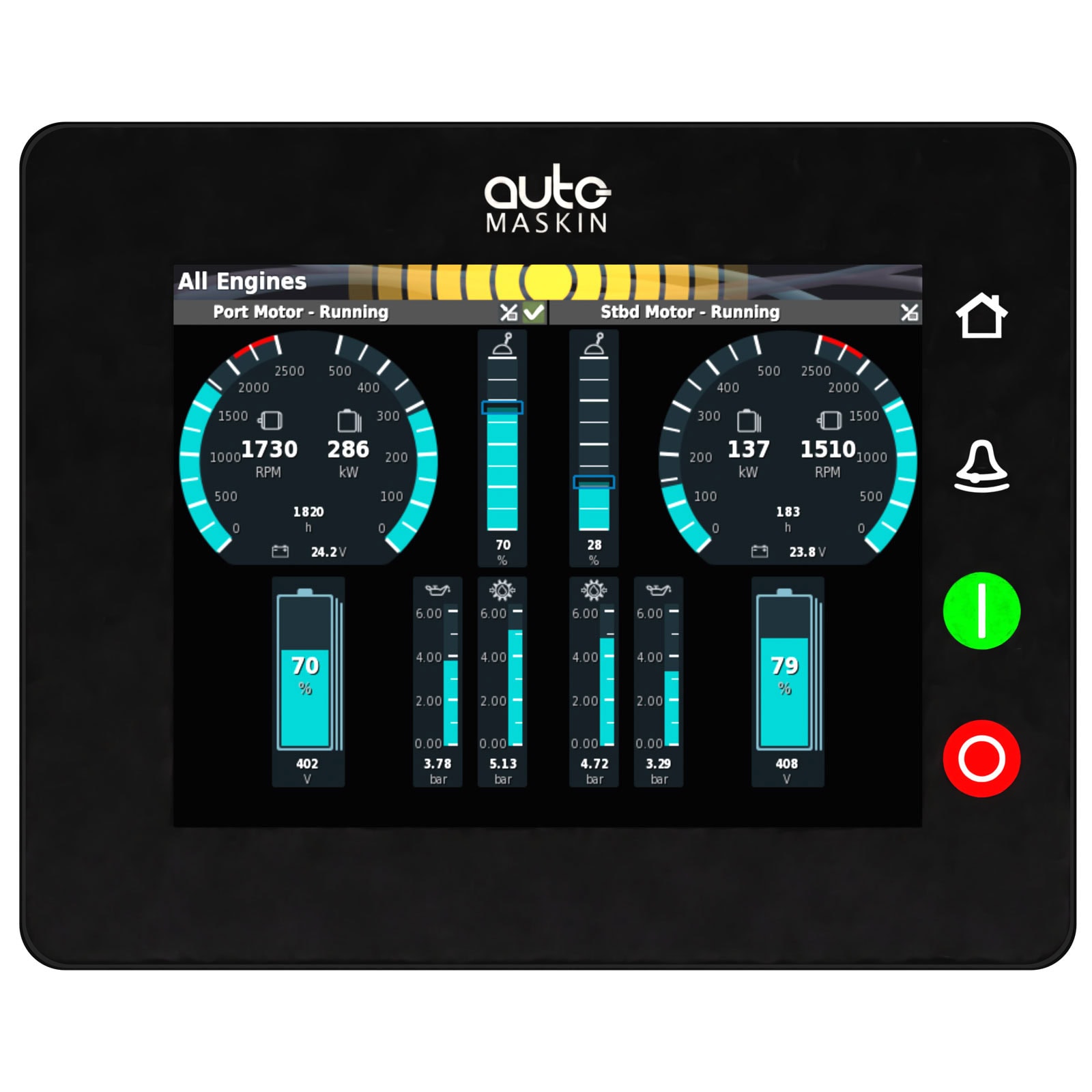

The RP 420E is a cyber secure IACS-approved remote touchscreen panel for twin-engine configurations with 200 Series or 400 Series of Marine Pro engine controllers. It has a high resolution, sunlight capable screen and is fully weather protected with weather tight connectors.
The RP 420E is a cyber secure IACS-approved remote touchscreen panel for twin-engine configurations with 200 Series or 400 Series of Marine Pro engine controllers. It has a high resolution, sunlight capable screen and is fully weather protected with weather tight connectors.

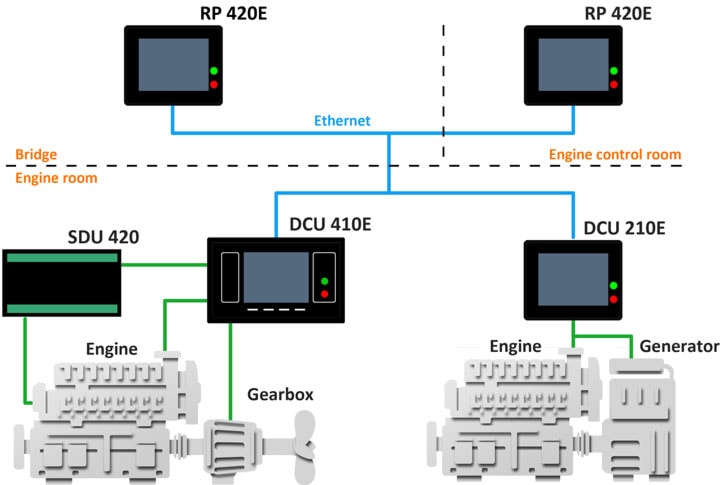

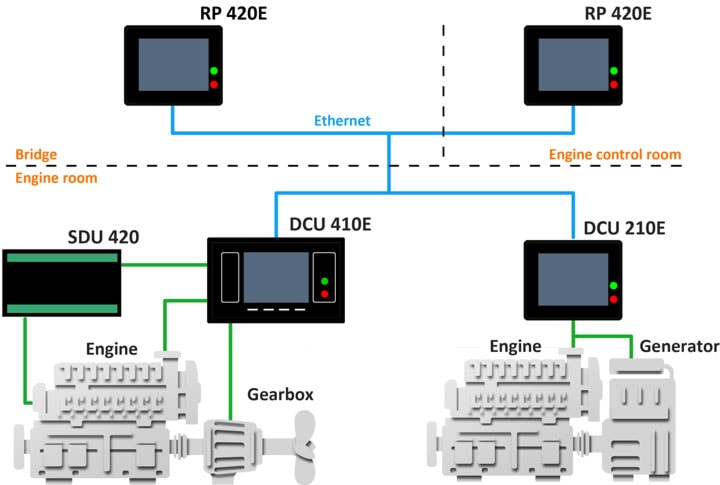

The RP 420E retains several IACS Society Approvals and can monitor and control one or two Marine Pro 200 Series or 400 Series DCUs. The panel is also truly self-configuring. Any changes in any engine controller’s configuration are immediately reflected into the RP 420E without any operator actions.
“If more than two DCUs are in use or a larger screen is needed, the RP 480i Remote Panel with it’s 12″ touchscreen can control up to eight Marine Pro 200 Series or 400 Series engine controllers.”
There is no practical limit to how many RP 420E remote panels that can be connected to one engine controller.

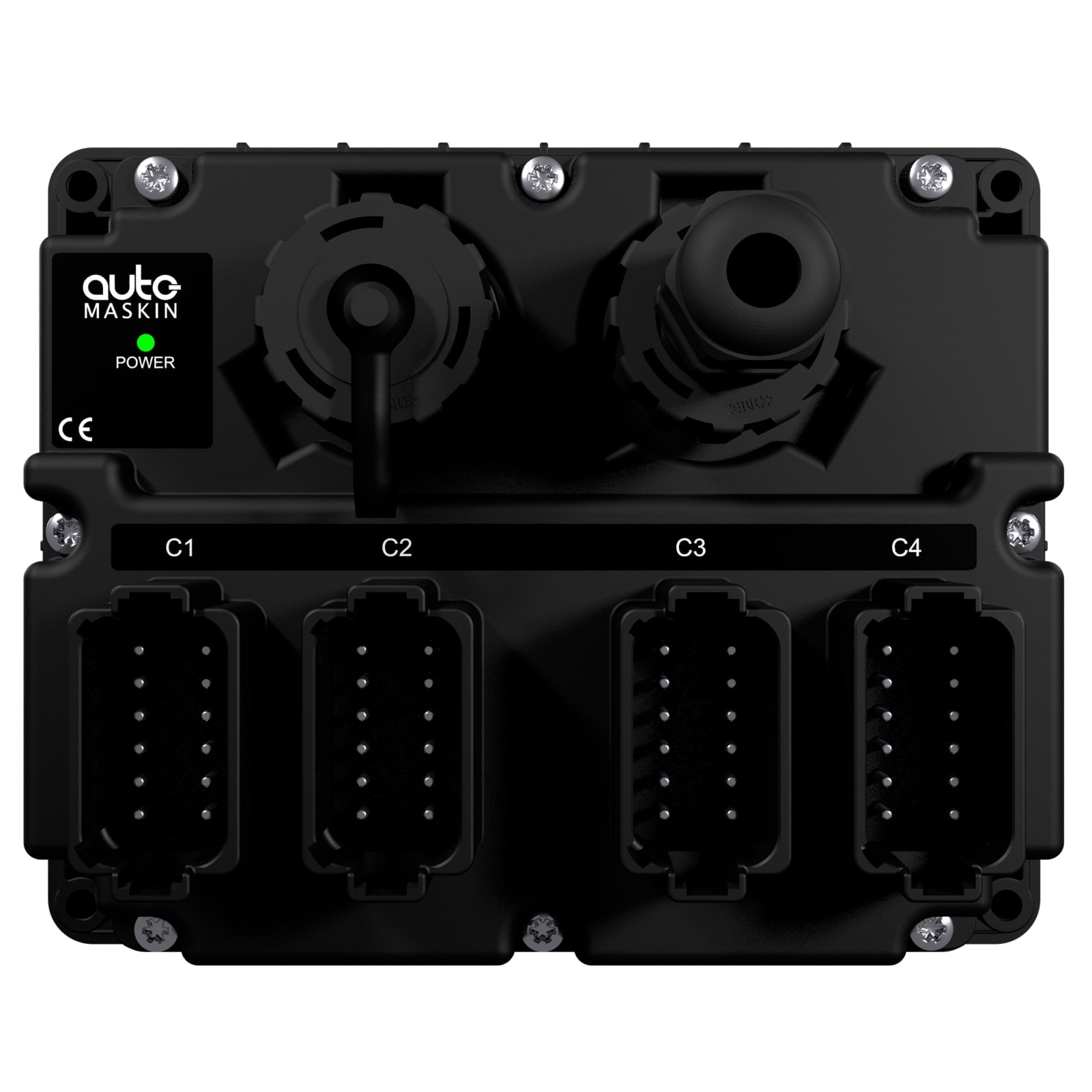

Note! A Basic Harness Kit (P/N: 1006946) including one prewired Deutsch DT-connector with a 2 m power cable and three sealing blind plugs for easy installation is available and if needed, this must be ordered separately.
Compatible products: The RP 420E can be attached to the following products
At a glance:
IACS approved
Cyber secure
Self-configuring
Touchscreen
Rugged glass-helm design
Twin engine control
Hybrid/electric ready
Why choose the DCU 410E:
Easy, low-risk install
No programming needed
Works with all Marine Pro 200 and 400 Series engine controllers
Multilingual – crew-friendly and global
Accurate data visualisation for safe decisions
Flexibility to monitor and control both propulsion and gensets on one screen
SKU: 1006484
Category: Remote Panels
Tags: IP56, IP66 (Front), Marine Pro 400, Remote Panel, Touchscreen
