DCU 305 R3 LT Engine Controller
The proven choice for classed, low-cost mechanical engines, the DCU 305 R3 LT is a class-approved engine panel for non-CAN bus engines, and is the direct successor for the DCU 305 R2 in all variants.
In addition, it combines the Classification Society requirements for separate monitoring and safety functions in one unit. There is another version of this panel, the DCU 305 R3, that includes a J1939 CAN bus interface for engines equipped with an ECM.
The panel can be configured to run in one of four main operating modes. These are:
(1)Propulsion
(2)Auxiliary
(3)Emergency
(4)Combined Auxiliary/Emergency

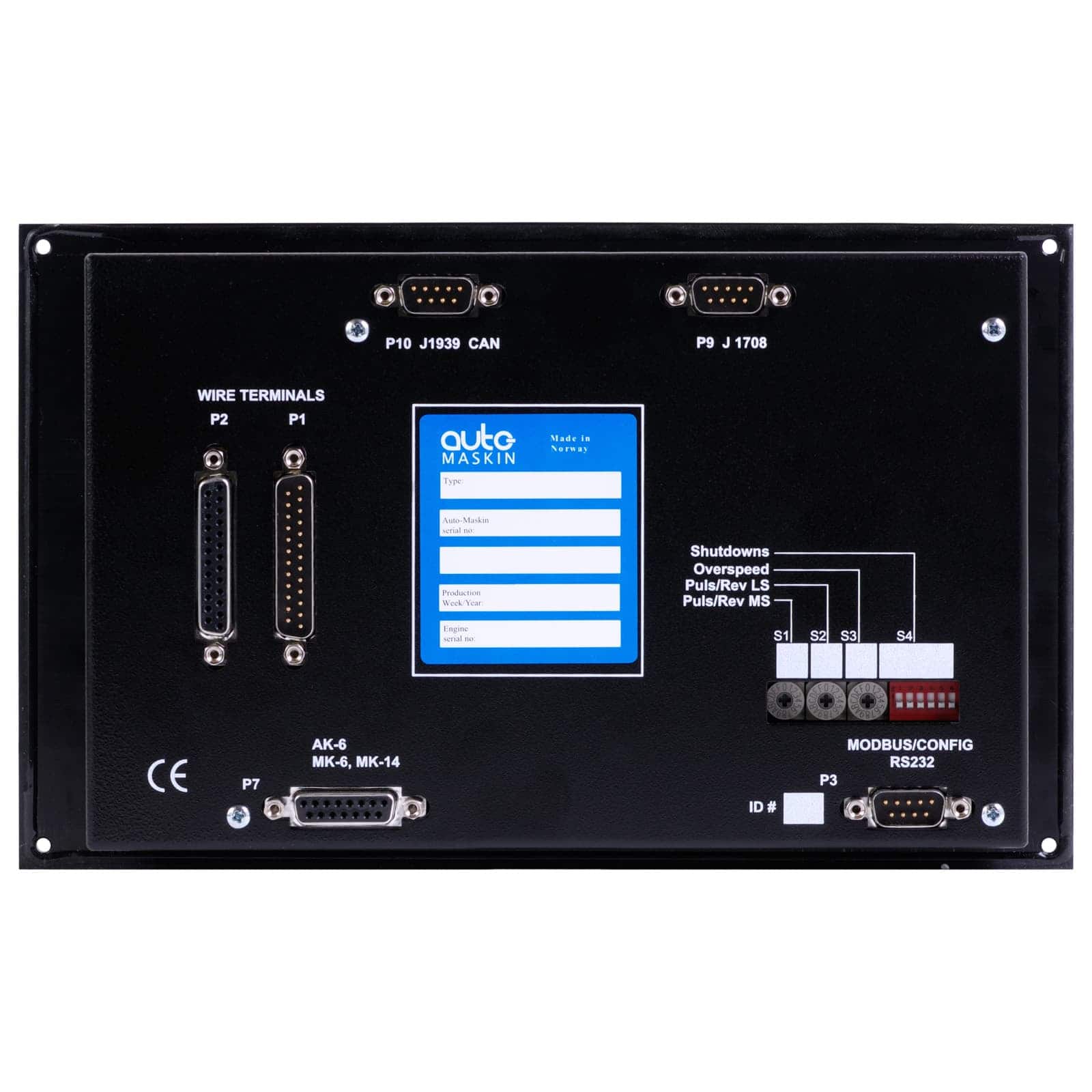

The included wire terminal module RK-66 has multiple I/O channels, where some have fixed functionality and others are configurable to any available function or event.
Expansion of physical I/O is available if necessary. The AK-6 unit add six 4-20 mA channels and the MK-14 unit add 14 relay channels.
Finally, configuring the panel is a breeze with the extremely user friendly Windows software Rudolf R3. Configuration files from the DCU 305 R3 are fully compatible.

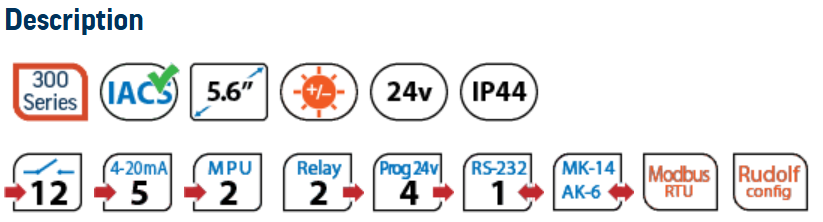

At a glance:
Integrated Independent Shutdown unit
Can be used in four different main operation modes
Speed relays allowing RPM dependent set points
Secure Event Log records all activities
IACS certified and approved by major classification societies
Why choose the DCU 305 R3 LT:
Cost effective controller for gas- and diesel engines without an electronic control module, ECM

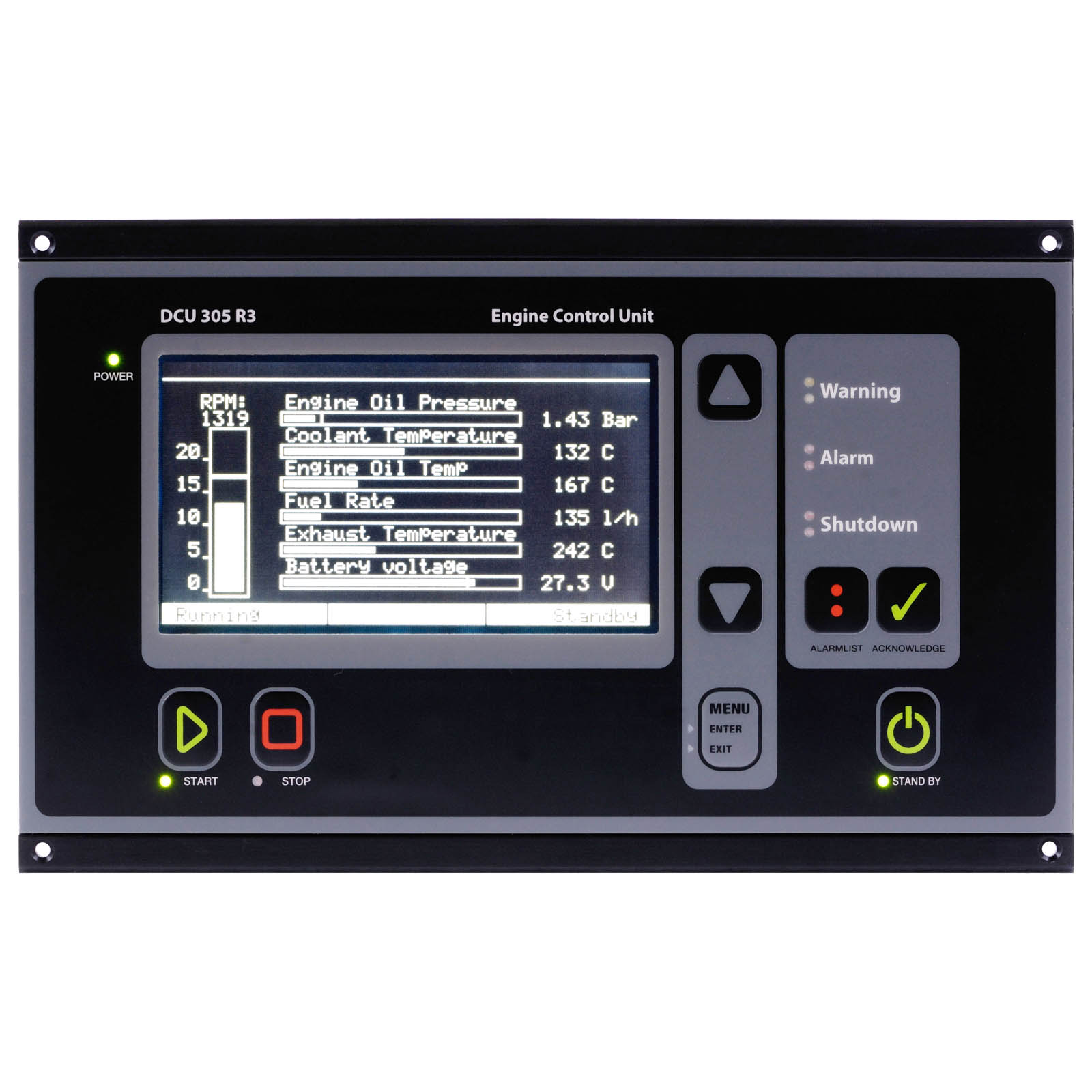

Simple clear display with easy menu structure
Configured with user-friendly, free to download Windows(tm) software
Two-unit construction, supplied with “Plug & Play” cables
Remote panel kit available that can monitor up to four DCU 305’s
SKU: 1006420
Category: Engine Controllers
Tags: Engine Controller, IP56, Marine Pro 200
