DCU 210E Engine Controller

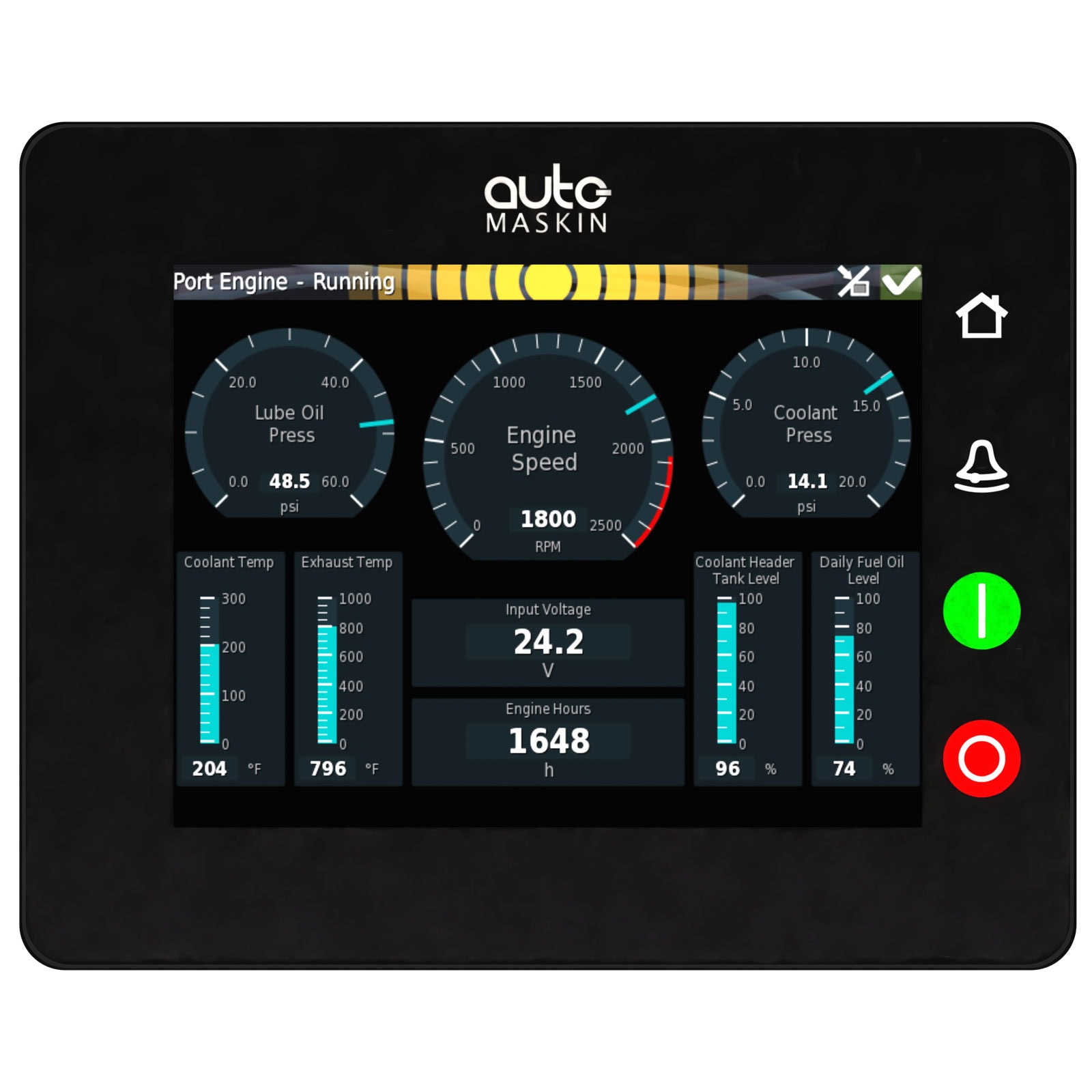

The DCU 210E is a complete, standalone engine supervision unit, with a daylight-capable and responsive touch screen, IP56 environmental protection front and rear, configurable input and output channels and a fast CPU.
The design is modern, effective and provides installation possibilities in all outdoor and exposed locations. Using the high resolution colour touch screen, the operator can easily browse instrument screens, alarm lists and menus available in pre-loaded languages. Additionally, dedicated start/stop, home and alarm acknowledge buttons have been provided to make operation even more intuitive. The unit is optimized for today’s electronic engines and gearboxes with two J1939 interfaces, and the 19 fully configurable inputs allows a wide variety of sensor inputs from older mechanical engines and transmissions. Suitable for both 12- and 24V DC installations.
In larger projects, the unit can be expanded with additional inputs using the built-in RIO link. There is also a module available that links in generator AC parameters. These inputs need not be just engine parameters but inputs from any Engine Room system are possible. With the built in web server and the internet browser on your laptop or portable device, the DCU 210E can be easily configured.
Modbus communication is available on RS-485 and on Ethernet as Modbus TCP as standard. A configuration or firmware file can easily be up or downloaded into the unit, semi-automatically, by inserting a USB memory stick into the provided port, eliminating the need for any tooling or software, and providing field updating and installation by unskilled operators.
DCU 210E is fully prepared for remote panel integration and works seamlessly with the Auto-Maskin remote panel(s) and the Marine Broadcast, a cloud-based service giving users on any remote device running a standard web browser access to the alarm list of the connected vessel.
At a glance:
IACS approved
Cyber secure
Self-configuring
Touchscreen
Rugged glass-helm design
Hybrid/electric ready
Marine Broadcast for cloud based remote monitoring on mobiles, tablets and PCs
Why choose the DCU 210E:
Low-cost option when no local display is required
Supports multiple sensor types and outputs
Easy, browser-based configuration
Programmable engine control logic
Approved by 8 classification societies
SKU: 1006475
Category: Engine Controllers
Tags: Engine Controller, IP56, Marine Pro 200, Touchscreen
